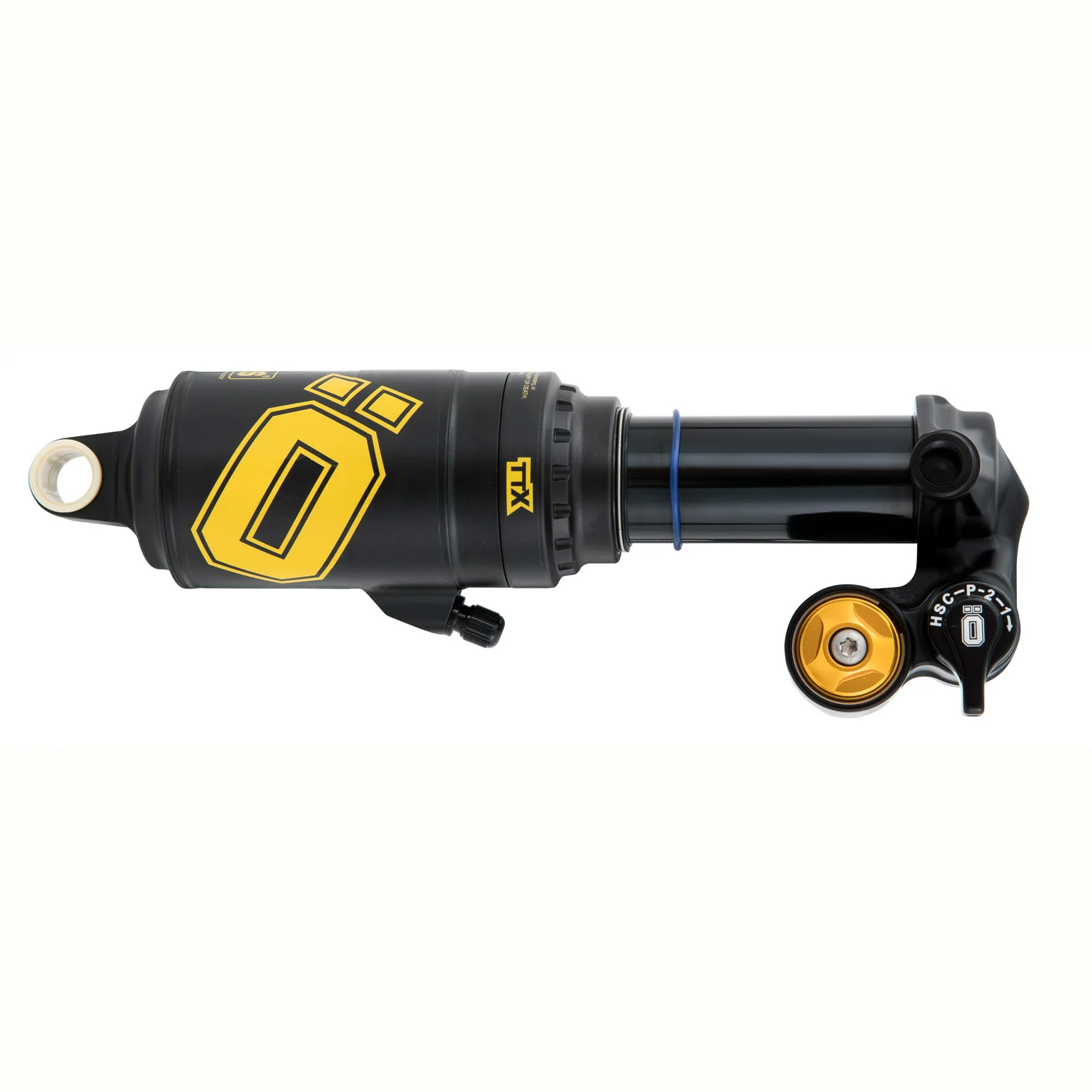

Ohlins TTX2Air Trunnion Shock 60/62.5/65 x 205mm

Ohlins TTX2Air Trunnion Shock 60/62.5/65 x 205mm

Ohlins TTX2Air Trunnion Shock 60/62.5/65 x 205mm

TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate

Trunnion mount: the linkage bolts directly to the sides of the cylinder head

TTX Twin tube design for consistent damping performance on all types of terrain

Extra bushing overlap for improved side load management

Specific wiper seal and air sleeve lubrication reduce friction

External rebound, low-speed and high-speed compression adjustment

Climb mode to reduce suspension movements during climbs

Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm

Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

TECH SPECS

model	TTX2 Air
stroke	60/62.5/65mm
eye-eye	205mm (trunnion)

$765.00

Ohlins TTX2Air Trunnion Shock 60/62.5/65 x 205mm—

$765.00

Ohlins TTX2Air Trunnion Shock 60/62.5/65 x 205mm

TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate

Trunnion mount: the linkage bolts directly to the sides of the cylinder head

TTX Twin tube design for consistent damping performance on all types of terrain

Extra bushing overlap for improved side load management

Specific wiper seal and air sleeve lubrication reduce friction

External rebound, low-speed and high-speed compression adjustment

Climb mode to reduce suspension movements during climbs

Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm

Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

TECH SPECS

model	TTX2 Air
stroke	60/62.5/65mm
eye-eye	205mm (trunnion)

Product Information

Shipping & Returns

Description

TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate

Trunnion mount: the linkage bolts directly to the sides of the cylinder head

TTX Twin tube design for consistent damping performance on all types of terrain

Extra bushing overlap for improved side load management

Specific wiper seal and air sleeve lubrication reduce friction

External rebound, low-speed and high-speed compression adjustment

Climb mode to reduce suspension movements during climbs

Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm

Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

TECH SPECS

model	TTX2 Air
stroke	60/62.5/65mm
eye-eye	205mm (trunnion)
