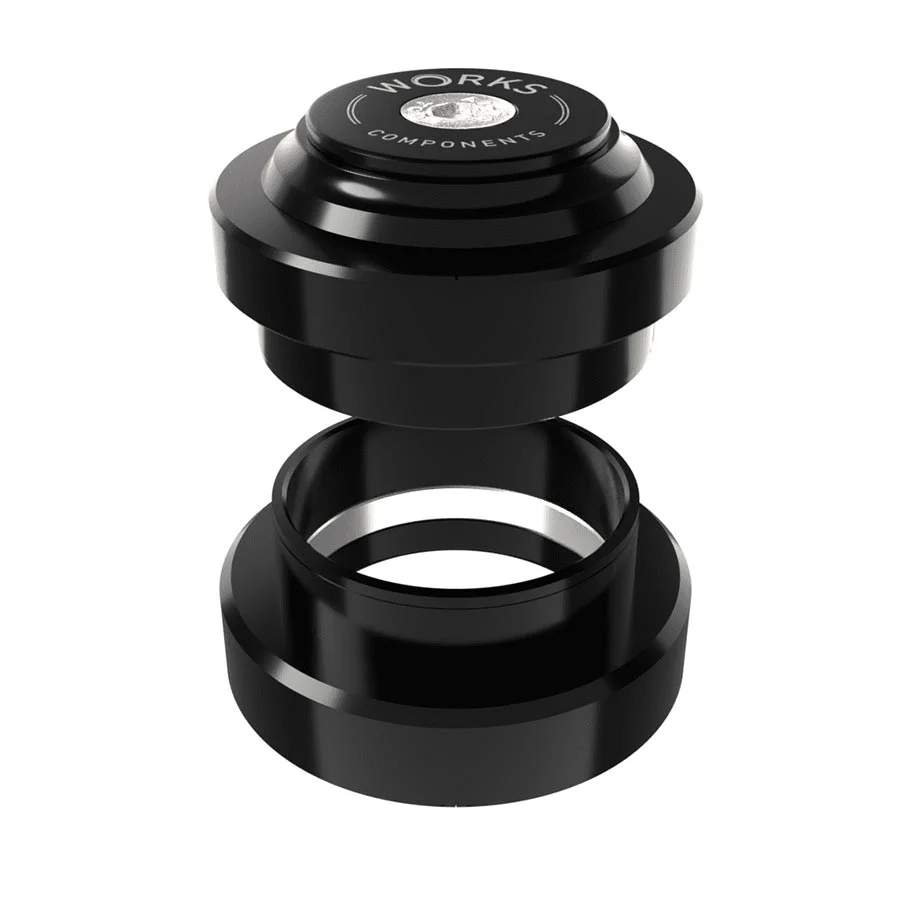

Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm

Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm

  • To suit tapered forks
  • If you are running a 1 1/8" fork you will need to purchase the Works Components reducer crown. - this headset comes as standard with a crown race to suit tapered forks
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm
  • Lower cup Stack height: 14mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
  • Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
  • Upper cup insertion depth: 9mm
  • Lower cup insertion depth: 10.5mm
  • Split type 7075-T6 aluminium crown race for simple, tool free installation
  • Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    Lower Cup 44mm
    Headset Position Complete
    Bearing Grade ACB Sealed
    Headset Type External Threadless
    Primary Color Black
    SHIS Upper EC44/28.6
    Upper Cup 44mm
    Misc Headtube length 90-99mm
    Material 7075-T6 Aluminum
    SHIS Lower EC44/30
    Stack Height 16
    Crown Race Diameter 44mm
    S.H.I.S. EC44/28.6 | EC44/40
    Angle 1.5°
    $99.99
    Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm—
    $99.99

    Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm

  • To suit tapered forks
  • If you are running a 1 1/8" fork you will need to purchase the Works Components reducer crown. - this headset comes as standard with a crown race to suit tapered forks
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm
  • Lower cup Stack height: 14mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
  • Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
  • Upper cup insertion depth: 9mm
  • Lower cup insertion depth: 10.5mm
  • Split type 7075-T6 aluminium crown race for simple, tool free installation
  • Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    Lower Cup 44mm
    Headset Position Complete
    Bearing Grade ACB Sealed
    Headset Type External Threadless
    Primary Color Black
    SHIS Upper EC44/28.6
    Upper Cup 44mm
    Misc Headtube length 90-99mm
    Material 7075-T6 Aluminum
    SHIS Lower EC44/30
    Stack Height 16
    Crown Race Diameter 44mm
    S.H.I.S. EC44/28.6 | EC44/40
    Angle 1.5°

    Product Information

    Shipping & Returns

    Description

  • To suit tapered forks
  • If you are running a 1 1/8" fork you will need to purchase the Works Components reducer crown. - this headset comes as standard with a crown race to suit tapered forks
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm
  • Lower cup Stack height: 14mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
  • Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
  • Upper cup insertion depth: 9mm
  • Lower cup insertion depth: 10.5mm
  • Split type 7075-T6 aluminium crown race for simple, tool free installation
  • Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    Lower Cup 44mm
    Headset Position Complete
    Bearing Grade ACB Sealed
    Headset Type External Threadless
    Primary Color Black
    SHIS Upper EC44/28.6
    Upper Cup 44mm
    Misc Headtube length 90-99mm
    Material 7075-T6 Aluminum
    SHIS Lower EC44/30
    Stack Height 16
    Crown Race Diameter 44mm
    S.H.I.S. EC44/28.6 | EC44/40
    Angle 1.5°
