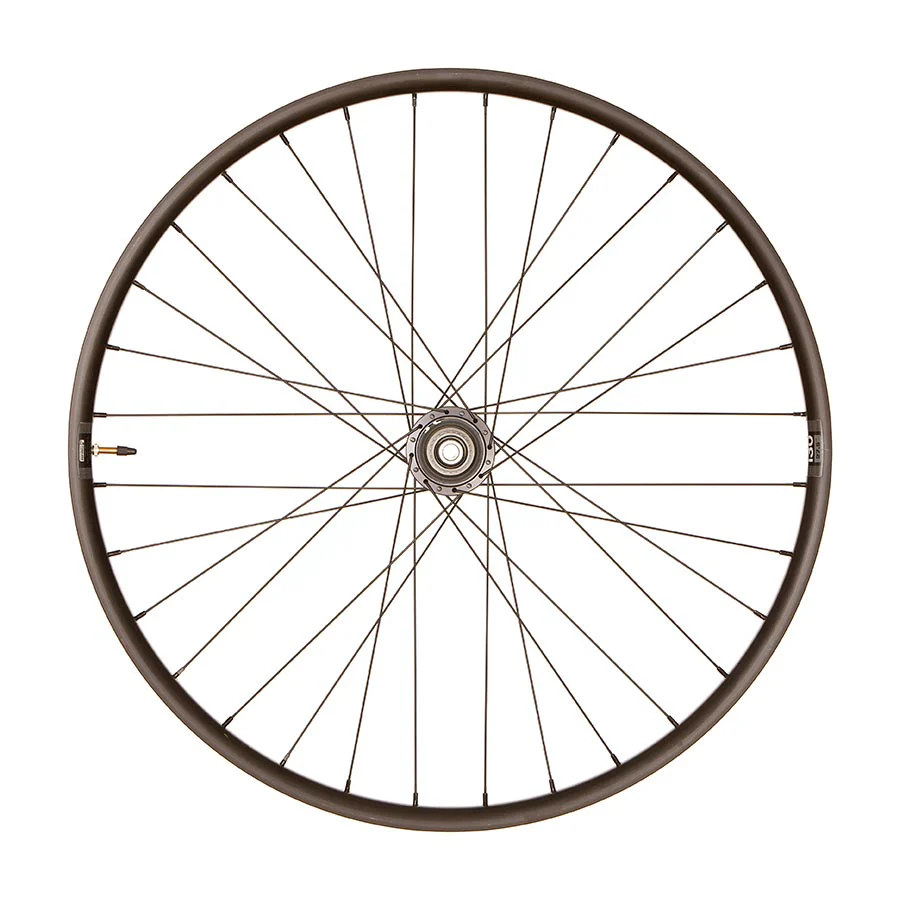

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline
HomeStore

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Shimano XT HB-M8110-B Boost
  • 15x110mm (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

  • Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
  • Center Lock (6-Bolt adapter included)
  • Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
  • HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
  • MS compatible 12 Spd Shimano Micro Spline

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)
    • TECH SPECS
    Hub Model Shimano XT FH-M8130-B
    Position Rear
    Wheel Tire Type Tubeless Compatible
    Hub Spacing 157mm
    Wheel Diameter/ISO 27.5 / 584
    Axle Type 12mm TA
    Rim Internal Width 30mm
    Spoke Type Sapim Race
    Rim Construction Double wall Sleeved
    Freehub Body Shimano Micro Spline
    Rim Color Black
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Rim inner width range 28-34.9mm
    Skewers Included No
    Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
    Rim Drilling 32
    Valve Presta
    $90.00

    Original: $299.99

    -70%
    Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline—

    $299.99

    $90.00

    Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Shimano XT HB-M8110-B Boost
  • 15x110mm (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

  • Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
  • Center Lock (6-Bolt adapter included)
  • Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
  • HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
  • MS compatible 12 Spd Shimano Micro Spline

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)
    • TECH SPECS
    Hub Model Shimano XT FH-M8130-B
    Position Rear
    Wheel Tire Type Tubeless Compatible
    Hub Spacing 157mm
    Wheel Diameter/ISO 27.5 / 584
    Axle Type 12mm TA
    Rim Internal Width 30mm
    Spoke Type Sapim Race
    Rim Construction Double wall Sleeved
    Freehub Body Shimano Micro Spline
    Rim Color Black
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Rim inner width range 28-34.9mm
    Skewers Included No
    Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
    Rim Drilling 32
    Valve Presta

    Product Information

    Shipping & Returns

    Description

  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Shimano XT HB-M8110-B Boost
  • 15x110mm (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

  • Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
  • Center Lock (6-Bolt adapter included)
  • Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
  • HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
  • MS compatible 12 Spd Shimano Micro Spline

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)
    • TECH SPECS
    Hub Model Shimano XT FH-M8130-B
    Position Rear
    Wheel Tire Type Tubeless Compatible
    Hub Spacing 157mm
    Wheel Diameter/ISO 27.5 / 584
    Axle Type 12mm TA
    Rim Internal Width 30mm
    Spoke Type Sapim Race
    Rim Construction Double wall Sleeved
    Freehub Body Shimano Micro Spline
    Rim Color Black
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Rim inner width range 28-34.9mm
    Skewers Included No
    Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
    Rim Drilling 32
    Valve Presta
