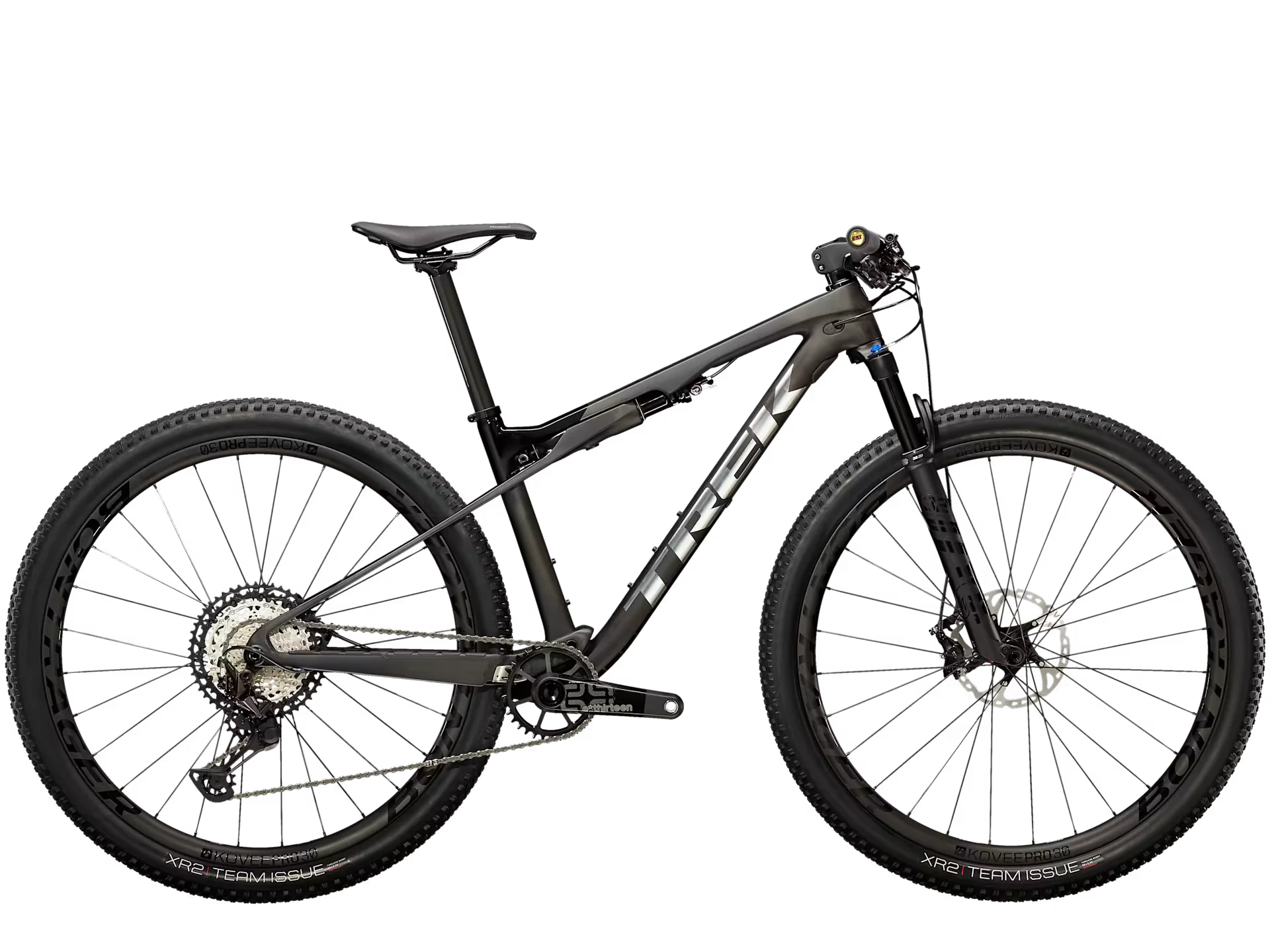

Supercaliber 9.8 XT Gen 1 - Matte Raw Carbongloss Black
Supercaliber 9.8 is a cross-country race bike developed for podium-topping World Cup speed. Its category-defining setup features Trek’s exclusive IsoStrut integrated shock and a lightweight FOX fork for a capable ride that's flat-out fast and soaks up technical terrain.
Frame & Suspension
- Frame: OCLV Mountain Carbon, IsoStrut, 60mm travel, Boost148, Knock Block
- Fork: Fox Performance 32 Step-Cast, GRIP remote lockout, 100mm travel
- Shock: Trek IsoStrut, Fox Performance, 235mm x 32.5mm
- Suspension Lever: Fox 2-position dual lockout lever
- Max Fork Travel: 120mm (531mm axle-to-crown)
Wheels & Tires
- Front Wheel: Bontrager Kovee Pro 30 Carbon, 29", Boost110
- Rear Wheel: Bontrager Kovee Pro 30 Carbon, Rapid Drive 108, Boost148, 29"
- Skewer (Rear): Bontrager Switch thru axle
- Rim: Bontrager Kovee Pro 30, OCLV Carbon
- Tire: Bontrager XR2 Team Issue, 29x2.20", Tubeless Ready, 120 TPI
- Sealant: Bontrager TLR, 6oz
- Rim Strip: Bontrager TLR
- Max Tire Size: Frame: 29x2.20"
Drivetrain
- Shifter: Shimano XT M8100, 12-speed
- Rear Derailleur: Shimano XT M8100
- Crank (S): E*thirteen TRS Race Carbon, 34T, 170mm
- Crank (M+): E*thirteen TRS Race Carbon, 34T, 175mm
- Bottom Bracket: E*thirteen BB20-92
- Cassette: Shimano XT M8100, 10-51
- Chain: Shimano Ultegra/XT M8100, 12-speed
- Max Chainring Size: 36T
Components
- Saddle: Bontrager Verse Elite, austenite rails, 145mm
- Seatpost (S): Bontrager Pro OCLV Carbon, 330mm
- Seatpost (M+): Bontrager Pro OCLV Carbon, 400mm
- Handlebar/Stem (S/M): Bontrager RSL Integrated, 750mm, 70mm stem
- Handlebar/Stem (ML/L): Bontrager RSL Integrated, 750mm, 80mm stem
- Handlebar/Stem (XL/XXL): Bontrager RSL Integrated, 750mm, 90mm stem
- Grips: ESI Chunky
- Headset: Knock Block Integrated, 62-degree, 1-1/8" to 1.5"
- Brakes: Shimano Deore XT M8100 hydraulic disc
- Brake Rotors: Shimano RT76, 160mm front and rear, with optional 180mm
- Rotor Max Size: Frame: 160mm; Fork: See fork manufacturer
Weight & Limits
- Weight (M): 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)
- Weight Limit: 300 lbs (136 kg) including bike, rider, and cargo
Select Size
From $1,500.00
Original: $4,999.99
-70%Supercaliber 9.8 XT Gen 1 - Matte Raw Carbongloss Black—
$4,999.99
$1,500.00Supercaliber 9.8 XT Gen 1 - Matte Raw Carbongloss Black
