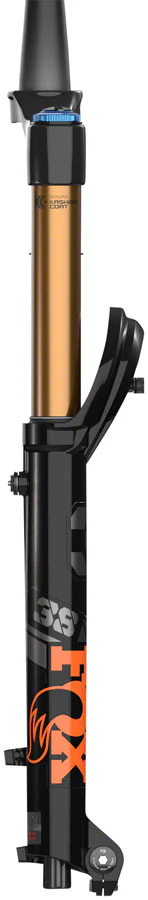

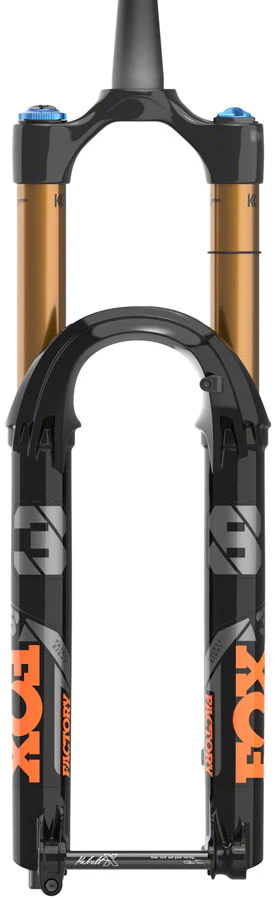

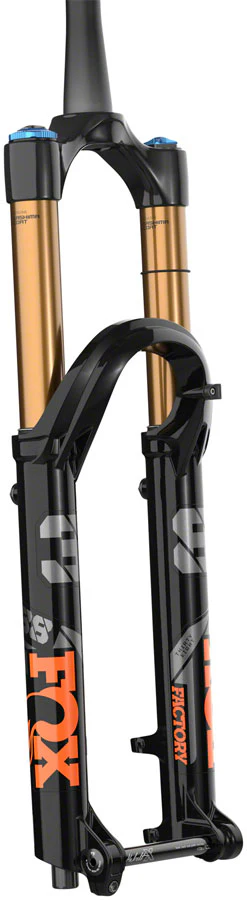

FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny BLK GRIP2 Kabolt-X
FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny BLK GRIP2 Kabolt-X
FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny Black GRIP2 Kabolt-X. FOX 38 Factory Series Suspension Fork is the long-travel enduro specialist. It redefines what you think a long travel single crown fork is capable of and sets a new benchmark for confidence performance and durability.The floating axle offers a distinct performance advantage due to its unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs
Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel notably improving sensitivity and overall ride quality
The 38 Fork comes equipped with a quick-release lever operated patent-pending floating axle system combining the benefit of a floating axle with the ease of a tool-free quick-release
Lower leg bypass channels alleviates air pressure by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping
Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button
The 38s lower leg arch design pulls out all the stops shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding
GRIP2 damper includes Foxs patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance
FLOAT EVOL air spring technology increases negative air spring volume optimizing small bump sensitivity
Direct mud guard mount
Genuine Kashima Coating on upper tubes
27.5: 723mm peak tire diameter
29: 762mm peak tire diameter
- TECH SPECS
| Steerer Type | Tapered |
| Color | Shiny Black |
| Lockout Switch | None |
| Brake Type | Post Mount 160 |
| Crown Race | 40 |
| Negative Spring | Air |
| Travel (mm) | 170 |
| Wheel Size | 27.5" |
| Offset | 44 |
| Defined Color | Black |
| Positive Spring | Air |
| Front Axle | 15mm Thru x 110mm |
| Stanchion Diameter | 38 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Steerer Tube Length (mm) | 264 |
$374.70
Original: $1,249.00
-70%FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny BLK GRIP2 Kabolt-X—
$1,249.00
$374.70More Images
FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny BLK GRIP2 Kabolt-X
FOX 38 Factory Suspension Fork - 27.5" 170 mm 15 x 110 mm 44 mm Offset Shiny Black GRIP2 Kabolt-X. FOX 38 Factory Series Suspension Fork is the long-travel enduro specialist. It redefines what you think a long travel single crown fork is capable of and sets a new benchmark for confidence performance and durability.The floating axle offers a distinct performance advantage due to its unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs
Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel notably improving sensitivity and overall ride quality
The 38 Fork comes equipped with a quick-release lever operated patent-pending floating axle system combining the benefit of a floating axle with the ease of a tool-free quick-release
Lower leg bypass channels alleviates air pressure by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping
Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button
The 38s lower leg arch design pulls out all the stops shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding
GRIP2 damper includes Foxs patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance
FLOAT EVOL air spring technology increases negative air spring volume optimizing small bump sensitivity
Direct mud guard mount
Genuine Kashima Coating on upper tubes
27.5: 723mm peak tire diameter
29: 762mm peak tire diameter
- TECH SPECS
| Steerer Type | Tapered |
| Color | Shiny Black |
| Lockout Switch | None |
| Brake Type | Post Mount 160 |
| Crown Race | 40 |
| Negative Spring | Air |
| Travel (mm) | 170 |
| Wheel Size | 27.5" |
| Offset | 44 |
| Defined Color | Black |
| Positive Spring | Air |
| Front Axle | 15mm Thru x 110mm |
| Stanchion Diameter | 38 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Steerer Tube Length (mm) | 264 |
