DVO Onyx SC D1 29 Fork 180mm 15-D Black

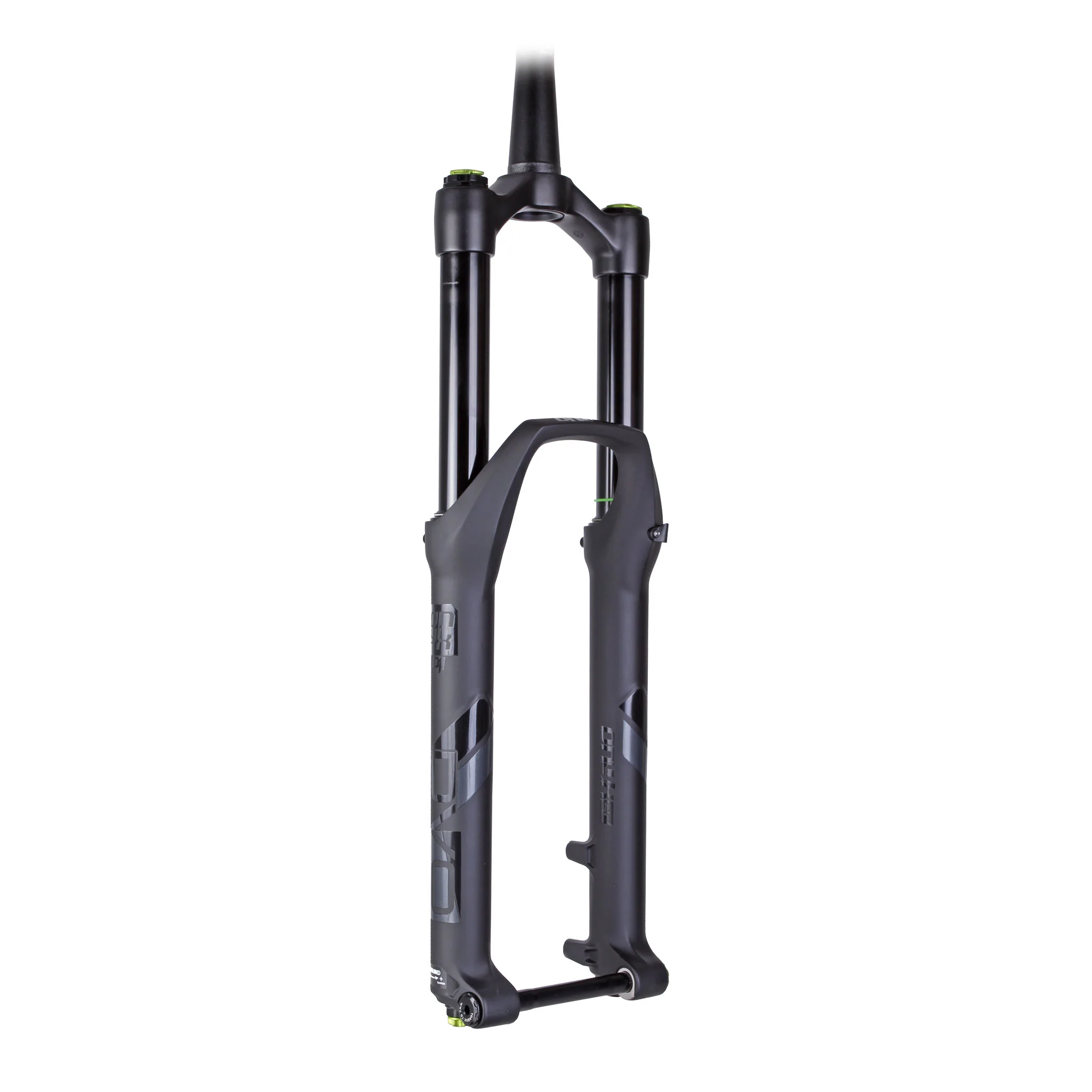

DVO Onyx SC-D1 Suspension Fork - 29" 180mm Travel 44mm Offset 15 x 110mm Black. The Onyx SC-D1 is the little brother to the Onyx DC and with 180mm of travel this is DVO’s top of the line enduro race fork. Featuring the proven D1 damper high/low speed compression rebound and externally adjustable OTT. With 36mm stanchions and the stiffest chassis yet riders can charge hard into the roughest sections with confidence.Six clicks of low speed compression give quick access to firming up the fork for pedaling opening for descending and mid settings for everything in between
Over thirty clicks of High Speed Compression give precise control for support on big hits
Shim stack controlled rebound that is 100% dynamic; meaning the rebound is controlled based on the speed at which oil flows through the system
Exclusive OTT (Off The Top) adjustment feature allows riders to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise
- TECH SPECS
| Steerer Type | Tapered |
| Defined Color | Black |
| Positive Spring | Air |
| Wheel Size | 29" |
| Offset | 44 |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Color | Black |
| Lockout Switch | Crown |
| Negative Spring | Air |
| Travel (mm) | 180 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Steerer Tube Length (mm) | 255 |
| Weight | 2250 |
| Stanchion Diameter | 36 |
| Axle to Crown Length | 592 |
| Crown Race | 40 |
| Front Axle | 15mm Thru x 110mm |
| Brake Type | Post Mount 160 |
